An Overview Of Our Rental Equipment

Climate Chamber - Vötsch ClimeEvent C1000 Series

Versatile and reliable test chambers simulating different temperature and humidity conditions. With multiple access ports equally suitable for test bench use, back-to-back setup or laboratory tests. These chambers can be set up for endurance or short-term test scenarios.

Details:
  • Capacity: 1000l
  • Test space dimensions: 950 x 1100 x 950mm
  • Exterior housing dimensions: 2000 x 1415 x 2030mm
  • Weight: 1100kg
  • Humidity range: 10 up to 98% RH
Available configurations:
  •  Temperature-changing speed:
       3 K/min
       5 K/min
  • Temperature range:
       -72°C up to +180°C
       -42°C up to +180°C

                                                                              starting at 104€/day

Climate Chambers - Vötsch ClimeEvent C600 Series

Versatile and reliable test chambers simulating different temperature and humidity conditions. With multiple access ports equally suitable for test bench use, back-to-back setup or laboratory tests. For smaller test rigs these 600l - class chambers are a compact and convenient alternative.
Details Weiss C600/70/5:
  • Test space dimensions: 950 x 800 x 800mm
  • Exterior housing dimensions: 2000 x 1115 x 1855mm
  • Weight: 680kg
  • Humidity range: 10 up to 98% RH
  • Temp.-changing speed: 5 K/min
  • Temp. range: -72°C up to +180°C
Details CTS C-70/600:
  • Test space dimensions: 850 x 850 x 830mm
  • Exterior housing dimensions: 1900 x 1120 x 1875mm
  • Weight: 600kg
  • Humidity range: 10 up to 98% RH
  • Temp.-changing speed: 3 K/min
  • Temp. range: -70°C up to +180°C

                                                                                    starting at 88€/day

Temperature Conditiong Unit - Autotherm AKW

The Autotherm AKW conditioning unit series are suitable whenever a wide temperature range for the test devices' coolant is needed. These devices are available either in a single- or dual circuit configuration.
Details AKW T300W (dual circuit):
  • Temperature control circuit 1+2
  • Heating capacity: 18kW
  • Cooling capacity: 2,5kW @ -30°C
  • Temperature range: -30 up to +130°C
  • Reservoir capacity: 16l
  • Feed line pressure: up to 7,5 bar
  • Maximum flow rate: 53 l/min
  • Coolant: 40/60% Water/Glycol
  • Width:    800mm
  • Height: 2200mm
  • Depth:  1460mm
  • Weight:   1000kg
AKW T100W (single circuit):
  • Heating capacity: 18kW
  • Cooling capacity: 4kW @ -40°C
  • Temperature range: -40°C up to +120°C
  • Reservoir capacity: 50l
  • Feed line pressure: up to 13,7 bar
  • Maximum flow rate: 75 l/min
  • Coolant: 40/60% Water/Glycol
  • Width:    900mm
  • Height: 2000mm
  • Depth:  2200mm
  • Weight:   1232kg

                                                                       starting at 112€/day


Battery Simulator - Kratzer VES 4.0c / 4.1c

Silicon carbide technology-based battery simulator. Combines a high power-density in a compact form-factor:
  •     Maximum power output: 290kW at 1000V and 1000A
  •     High-Speed FPGA Interface, dSpace Scalexio compatible
  •     CAN and EtherCAT Interface
  •     Groupable, to form a power-grid of three with up to 870kW
  •     Width:  1800mm
  •     Height: 2350mm
  •     Depth:    600mm
  •     Weight:   1000kg

                                                                                    starting at 223€/day

Power Analyzer - Dewetron DEWE3-PA8

High performance power-analyser and mixed signal recorder all-in-one-device with:
  • Up to 16 different power phases
  • Up to 10 MS/s @ 18-bit sampling rate
  • Modular signal inputs for torque, speed, vibration, temperature etc.
  • CAN interface
  • EtherCAT with XCP support
  • SCPI over Ethernet
  • Up to 16 high-voltage inputs with up to -2000V peak
  • Plug-and-play current transducer support up to 2000A RMS with integrated power supply

                                                                                   starting at 93€/day

Power Analyser Yokogawa WT5000

Precision multi-channel power analyser with:
  • Up to 7 different power phases
  • Up to 10MS/s @ 18-bit sampling rate
  • Up to 7 high-voltage inputs with up to -1000V peak
  • Current transducer supports up to 2000A RMS
  • Ethernet, USB and RS232 interfaces

                                                                                     starting at 93€/day

Temperature Conditioning Unit - Julabo LH50 Presto Plus

Details:
  • Heating capacity: 6 kW
  • Cooling capacity: up to 7 kW
  • Temperature range: -50°C up to +250°C
  • Reservoir capacity: 13,5l
  • Feed line pressure: up to 2,2 bar
  • Maximum flow rate: 30 l/min
  • Coolant: 40/60% Water/Glycol
  • Width:    400mm
  • Height: 1270mm
  • Depth:    550mm
  • Weight:     182kg

                                                                                        starting at 35€/day

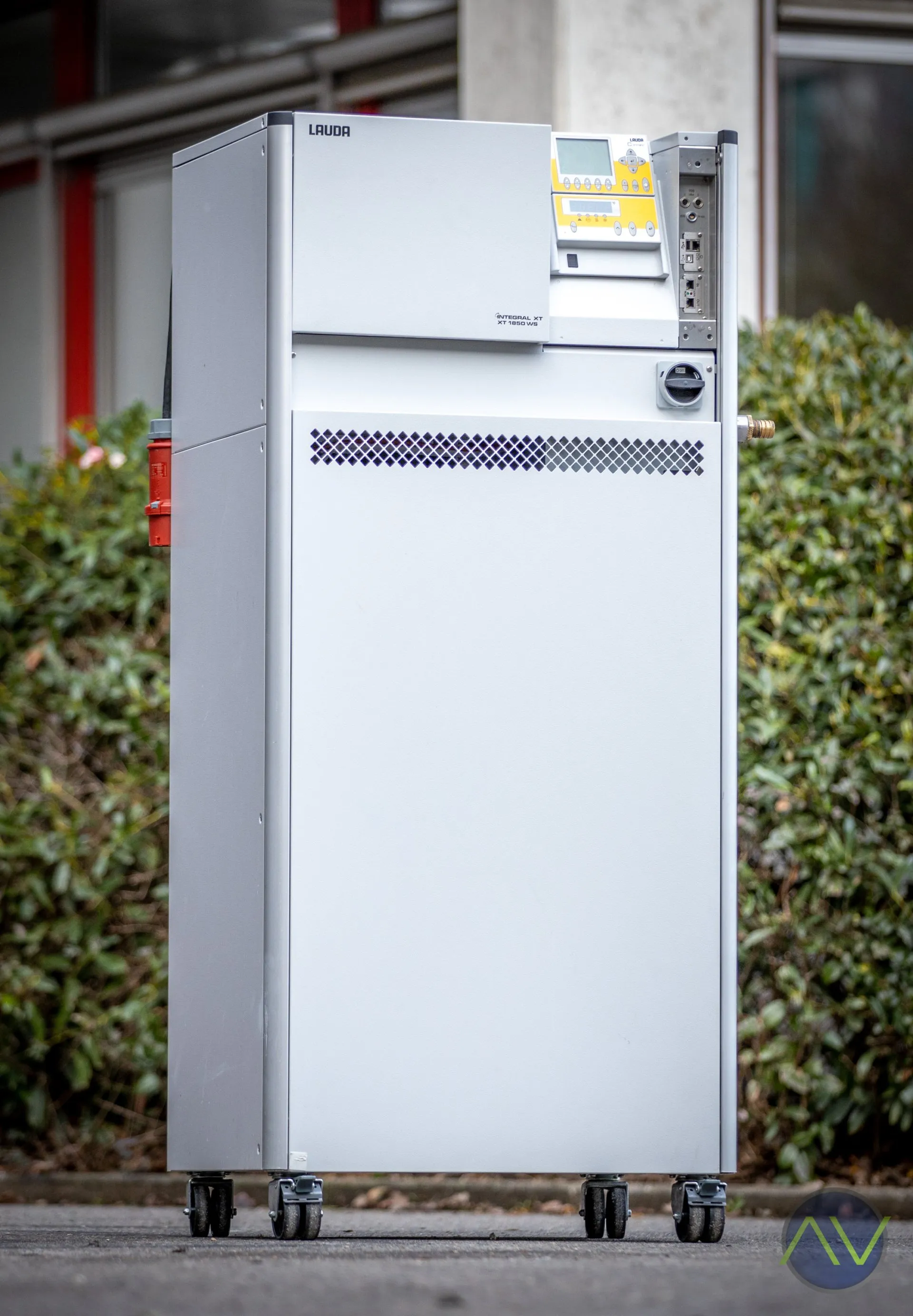

Temperature Conditioning Unit - Lauda Integral XT 1850 WS

Details:
  •  Heatings capacity: 16 kW
  • Cooling capacity: up to 18,5 kW
  • Temperature range: -50°C up to +220°C
  • Reservoir capacity: 17,4l
  • Feed line pressure: up to 5,8 bar
  • Maximum flow rate: 90 l/min
  • Coolant: 40/60% Water/Glycol
  • Width:    700mm
  • Height: 1600mm
  • Depth:    550mm

                                                                                           starting at 102€/day
