Our rental equipment at a glance
Climate chamber - Vötsch ClimeEvent C1000 Series
Versatile and reliable test chambers that simulate different temperature and humidity conditions. With multiple access ports that are equally suitable for use on the test bench, for back-to-back setup or for laboratory testing. These chambers can be set up for endurance or short-term test scenarios.
Details:
- Volume: 1000l
- Test room dimensions: 950 x 1100 x 950mm
- External dimensions: 2000 x 1415 x 2030mm
- Weight: 1100kg
- Humidity range: 10 to 98% RH
Available configurations:
- Temperature change rates:
3 K/min
5 K/min - Temperature ranges:
- -72°C to +180°C
-
- -42°C to +180°C
Climate chamber - Vötsch ClimeEvent C600 Series
Versatile and reliable test chambers that simulate different temperature and humidity conditions. With multiple access openings that are equally suitable for use on the test bench, for back-to-back setup or for laboratory testing. For smaller test benches, these 600l class chambers are a compact and convenient alternative.
Details White C600/70/5:
- Test room dimensions: 950 x 800 x 800mm
- External dimensions: 2000 x 1115 x 1855mm
- Weight: 680kg
- Humidity range: 10 to 98% RH
- Temperature change rate: 5 K/min
- Temperature range: -72°C to +180°C
Details CTS C-70/600:
- Test room dimensions: 850 x 850 x 830mm
- External dimensions: 1900 x 1120 x 1875mm
- Weight: 600kg
- Humidity range: 10 to 98% RH
- Temperature change rate: 3 K/min
- Temperature range: -70°C to +180°C
from 97€/day
Conditioning unit - Autotherm AKW
The Autotherm AKW heating/cooling combinations are suitable whenever a wide temperature range is required for the coolant of the test objects. These devices are available in either a single or dual circuit configuration.
Details AKW T300W (dual circuit configuration):
- Temperature control circuit 1+2
- Heat output: 18kW
- Cooling capacity: 2.5kW @ -30°C
- Temperature range: -30°C to +130°C
- Filling volume expansion tank: 16l
- Delivery pressure: up to 7.5 bar
- Max. flow rate: 53 l/min
- Coolant: 40/60% water/glycol
- Width: 800mm
- Height: 2200mm
- Depth: 1460mm
- Weight: 1000kg
AKW T100W (single circuit configuration):
- Heat output: 18kW
- Cooling capacity: 4kW @ -40°C
- Temperature range: -40°C to +120°C
- Filling volume expansion tank: 50l
- Delivery pressure: up to 13.7 bar
- Max. flow rate: 75 l/min
- Coolant: 40/60% water/glycol
- Width: 900mm
- Height: 2000mm
- Depth: 2200mm
- Weight: 1232kg
from 123€/day
Battery Simulator - Scratch VES 4.0c/4.1c
Battery simulator in SiC technology. Combines high power density in a compact form:
- Maximum output power: 290kW at 1000V and 1000A
- High-speed FPGA interface, dSpace Scalexio compatible
- CAN and EtherCAT interfaces
- Can be divided to form a three-part power grid with up to 870kW
- Width: 1800mm
- Height: 2350mm
- Depth: 600mm
- Weight: 1000kg
from 245€/day
Power meter - Dewetron DEWE3-PA8
High-performance analyzer and mixed signal recorder as an all-in-one device with:
- Up to 16 power channels
- Up to 10 MS/s and 18-bit A/D conversion
- High performance inputs for e.g. torque, speed etc.
- CAN-Interface
- EtherCAT and XCP
- SCPI via Ethernet
- Up to 16 high voltage inputs with -2000V peak
- Plug-and-play current transformer supports up to 2000A RMS with integrated power supply
from 102€/day

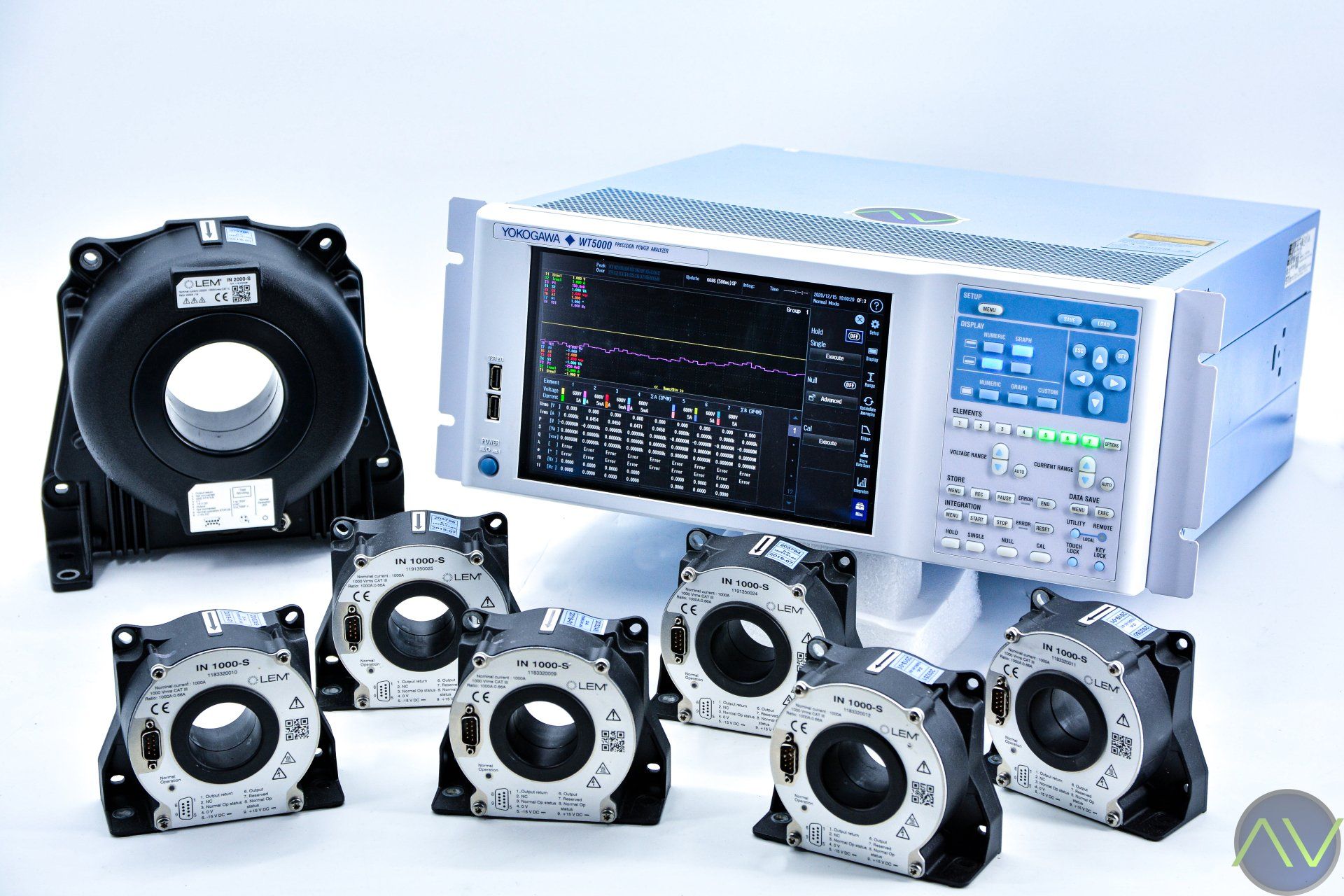

Power meter - Yokogawa WT5000
Precision multi-channel power analyzer with:
- Up to 7 different performance phases
- Up to 10MS/s and 18-bit A/D conversion
- Up to 7 high voltage inputs with -1000V peak
- Current transformer supports up to 2000A RMS
- Ethernet, USB and RS232 interfaces
from 102€/day
Conditioning unit - Julabo LH50 Presto Plus
Details:
- Heat output: 6 kW
- Cooling capacity: up to 7 kW
- Temperature range: -50°C to +250°C
- Expansion tank filling volume: 13.5l
- Delivery pressure: up to 2.2 bar
- Max. flow rate: 30 l/min
- Coolant: 40/60% water/glycol
- Width: 400mm
- Height: 1270mm
- Depth: 550mm
- Weight: 182kg
from 41€/day
Conditioning unit - Lauda Integral XT 1850 WS
Details:
- Heat output: 16 kW
- Cooling capacity: up to 18.5 kW
- Temperature range: -50°C to +220°C
- Expansion tank filling volume: 17.4l
- Delivery pressure: up to 5.8 bar
- Max. flow rate: 90 l/min
- Coolant: 40/60% water/glycol
- Width: 700mm
- Height: 1600mm
- Depth: 550mm
from 112€/day
